Applications
Mixers, Juicers, Grinders, Vacuum Cleaners,
Food Processors. |
|
| MOTOR TYPE |
PRODUCT
CODE |
STATOR |
|
ROTOR |
| |
|
O.D. (MM) |
I.D. (MM) |
SLOTS |
O.D. (MM) |
I.D. (MM) |

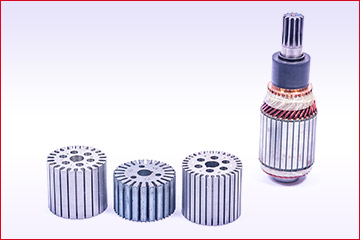

UNIVERSAL MOTORS
A.C./D.C. TYPE |
UC- 57 |
80.90 |
41.20 |
NIL |
40.00 |
8.35, 8.40,
11.0 |
|
UC- 75 |
89.00 |
47.00 |
NIL |
47.00 |
11 |
^Top |
|
 |
Applications
Microwave Ovens, Frost Free Motors, Vending
M/Cs, Heat Convectors, Fan Packs, Evp Cooler Pumps,
Ventilating Fans. |
| MOTOR TYPE |
PRODUCT CODE |
STATOR |
|
ROTOR |
| |
|
O.D. (MM) |
I.D. (MM) |
SLOTS |
O.D. (MM) |
I.D. (MM) |
SLOTS |

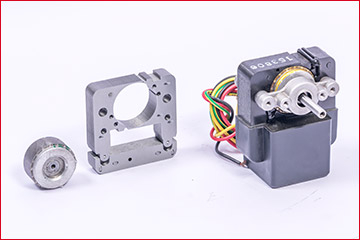

SHADED POLE
MOTOR |
CC- 179 |
SQUARE TYPE
|
29.20 |
NIL |
29.20 |
4.00, 4.75,
5.50. |
|
|
D- 1448 |
SQUARE TYPE |
31.70 |
NIL |
31.70 |
3.2, 4.0, 4.75, 5.5, 7.0, 7.4 |
|
| |
T- 25 |
56.00 SQ. TYPE |
25.00 |
NIL |
25.00 |
3.20, 4.00 |
|
| |
T- 23 |
88.90 |
48.20 |
4 |
48.20 |
7.95 |
22 |
^Top |
|
 |
Applications
Single Blower Cooler Fans, Split Air Conditioners,
Cooler Fans, Air Conditioner Motors, Mini Monobloc
Pumps, Monobloc Pumps, Jet Pumps. |
| MOTOR TYPE |
PRODUCT CODE |
STATOR |
|
ROTOR |
| |
|
O.D. (MM) |
I.D. (MM) |
SLOTS |
O.D. (MM) |
I.D. (MM) |
SLOTS |
|

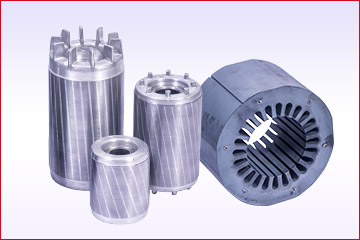

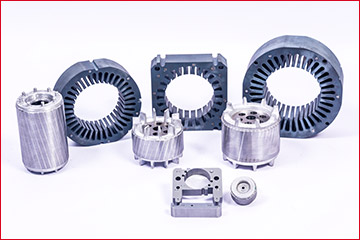

PERMANENT SPLIT CAPACITOR TYPE |
T-100 |
99.60 |
55.00 |
24 |
55.00 |
7.95, 12.00 |
33 |
|
T-200-24 |
127.80 |
76.20 |
24 |
76.20 |
12.70, 15.40. |
33 |
|
T-200-36 |
127.80 |
76.20 |
36 |
76.20 |
12.70, 15.40. |
48 |
|
UC- 48 |
139.00 |
79.40 |
36 |
79.40 |
12.58, 16.90 |
48 |
|
CC- 210 |
139.00 |
79.40 |
36 |
79.40 |
15.4 |
48 |
|
T- 1063 |
87.00 |
48.20 |
24 |
48.20 |
11.0, 13.5, 15.0 |
18 |
|
T- 1071- 54 |
105.00 |
54.00 |
24 |
54.00 |
20.0, 20.45 |
18 |
|
T- 1071 |
105.00 |
58.00 |
24 |
58.00 |
20.0, 20.45 |
18 |
|
T- 1080 |
126.00 |
63.00 |
24 |
63.00 |
25 |
18 |
|
CC-218 |
125.00 |
61.20 |
24 |
61.20 |
18.77 |
30 |
^Top |
|
 |
Applications
Single Blower Cooler Fans, Split Air Conditioners,
Cooler Fans, Air Conditioner Motors, Mini Monobloc
Pumps, Monobloc Pumps, Jet Pumps. |
| MOTOR TYPE |
PRODUCT CODE |
STATOR |
|
ROTOR |
| |
|
O.D. (MM) |
I.D. (MM) |
SLOTS |
O.D. (MM) |
I.D. (MM) |
SLOTS |
CSIR / RSIR TYPE
|
T-170 |
156.00 |
93.50 |
32 |
93.50 |
19.4 |
48 |
^Top |
|
 |

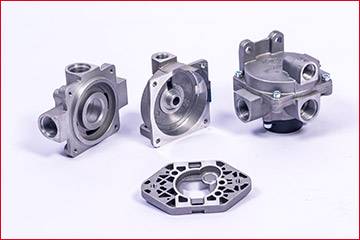

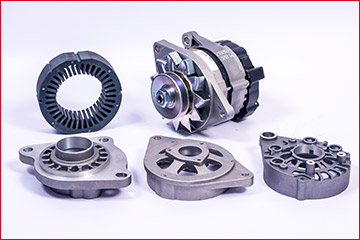

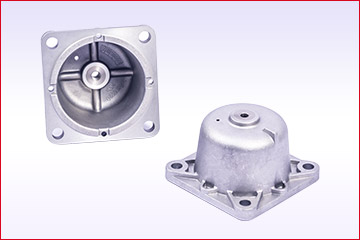

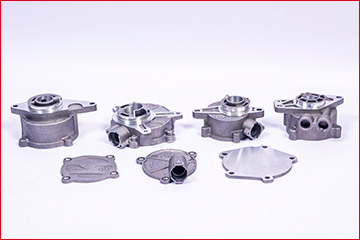

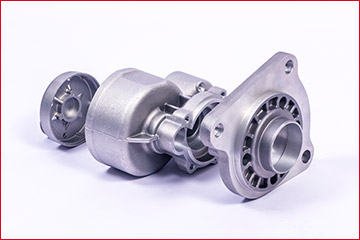

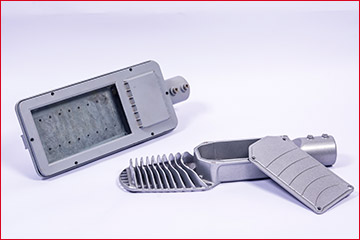

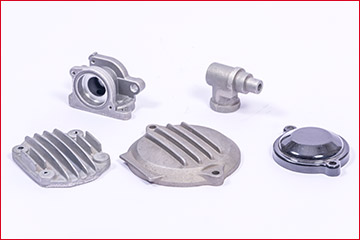

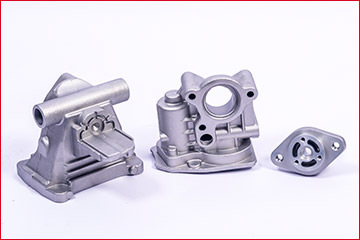

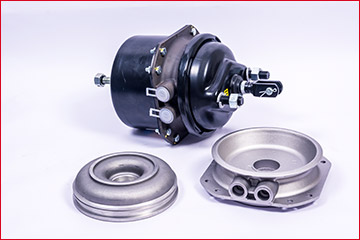

Aluminium pressure die cast
components

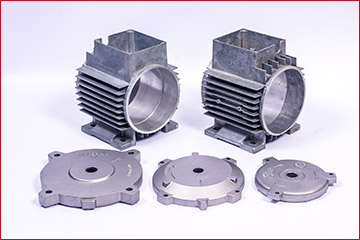

Aluminium pressure die cast components include
casted rotors, motor end covers, brackets etc. |
